Mobile market segment sensors

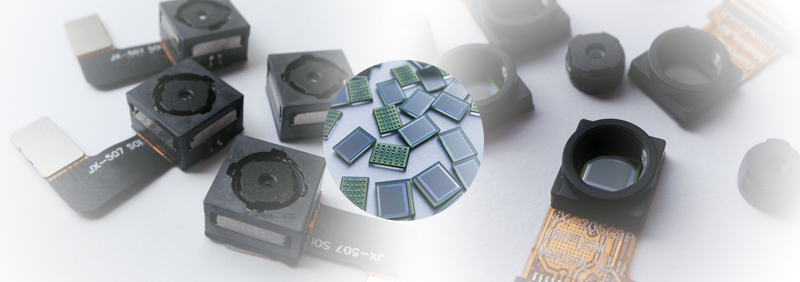

SOI has a portfolio of CMOS image sensors for the mobile phone and tablet market. These sensors are fabricated using the state of the art processes at leading foundries and provide best-in-class sensitivity, dark current, and cross talk at competitive cost structure. Our sensors are packaged using CSP technology and 100% final test and quality checked.
The JX-507 is a high performance 5MP raw sensor designed with SOI’s 1.4um pixel technology, delivers at 15fps in full frame through industry standard DVP or MIPI output, and has many standard programmable and automatic functions.
JX-205 is a 2MP raw sensor designed with SOI’s 1.75um pixel technology, delivers at 15fps in full frame through industry standard DVP or MIPI output, and has many standard programmable and automatic functions.
JX-215 is also a 2MP sensor with SOI’s 1.75um pixel technology but it has an integrated image signal processor. Similar to JX-205, it delivers at 15fps in full frame through DVP or MIPI interfaces, and has many standard programmable and automatic functions. In addition, it has sophisticated image processing functions including: Color interpolation, color correction, auto white balance, gamma correction, defect correction, and noise reduction.
